0448001.MR | Littelfuse

SMD fuse 6.1 x 2.69 mm, 1 A, FF, 125 V (AC), 50 A breaking capacity, 0448001.MR

Order No.: 55P7773
EAN: 4099889099508
MPN:
0448001.MR
Series: 448
0448001.MR Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
1.1543 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1,154.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
1.1543 €

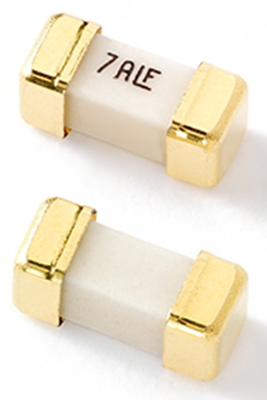

SMD-Fuse, 0448001.MR, Littelfuse

The 0448001.MR is a SMT fuse that is very small and square surface mount fuse that is RoHS-compatible, halogen-free and 100 % lead-free.

Features

  • Wide operating temperature range
  • Very fast-acting
  • Wide range of current
  • RoHS-compatible, leadfree and halogen free

Applications

  • LCD backlight inverter
  • Wireless basestation
  • Office automation equipment
  • Battery charging circuit protection
Technical specifications
Design 6.1 x 2.69 mm
Version SMD fuse
Enclosure SMD
Rated current 1 A
Tripping characteristics FF
Height 2.69 mm
Length 6.1 mm
Rated voltage (AC) 125 V
Breaking capacity 50 A
Width 2.69 mm
Logistics
Original Packaging Reel with 1,000 pieces
Customs tariff number 85361010
Country of origin PH
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
