0443003.DR | Littelfuse

SMD fuse 3.05 x 10.08 mm, 3 A, T, 250 V (AC), 50 A breaking capacity, 0443003.DR

Order No.: 55P7719
EAN: 4099889099386
MPN:
0443003.DR
Series: 443
0443003.DR Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
1.3566 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
2,034.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1500 pcs.
1.3566 €

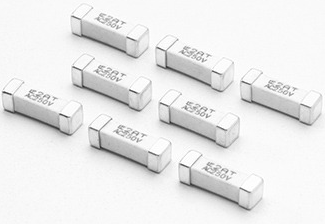

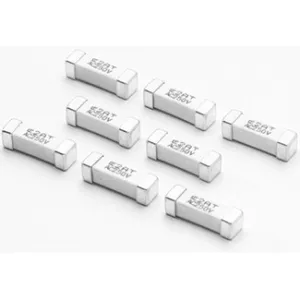

SMD-Fuse, 0443003.DR, Littelfuse

The 250 V fuse is a small square surface mount fuse that is designed to enable compliance with the RoHS directive. This product is fully compatible with lead-free solder alloy and higher temperature profiles associated with lead-free assembly

Features

  • 250 VAC voltage rating
  • Halogen-free and RoHS Compliant
  • Conforms to K60127-1 and K60127-7
Technical specifications
Design 3.05 x 10.08 mm
Version SMD fuse
Enclosure SMD
Rated current 3 A
Tripping characteristics T
Height 3.43 mm
Length 10.08 mm
Rated voltage (AC) 250 V
Breaking capacity 50 A
Width 3.05 mm
Logistics
Original Packaging Tray with 1,500 pieces
Customs tariff number 85361010
Country of origin PH
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
