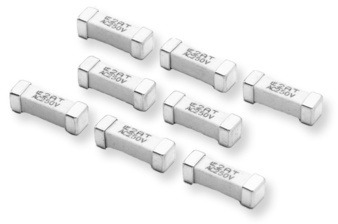

0443.750DR | Littelfuse
SMD fuse 10.08 x 3.05 mm, 750 mA, T, 250 V (AC), 50 A breaking capacity, 0443.750DR
Unit Price (€ / pc.)
1.3566 € *
Standard delivery time from the manufacturer is: 11 Weeks
Fuse, 0443.750DR, LITTELFUSE
A small square surface mount fuse that is designed to enable compliance with the RoHS directive. This product is fully compatible with lead-free solder alloy and the higher temperature profiles associated with lead-free assembly.
Features
- RoHS compliant and halogen-free
Applications
- AC/DC power adaptor
- Telecom equipment system power
- Portable system built-in AC/DC converter
- Lighting system
- LED lighting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | T | |
| Design | 10.08 x 3.05 mm | |
| Breaking capacity | 50 A | |
| Version | SMD fuse | |
| Rated voltage (AC) | 250 V | |
| Height | 3.05 mm | |
| Rated current | 750 mA | |
| Width | 3.05 mm | |
| Length | 10.08 mm | |
| Enclosure | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
