044103.5WR | Littelfuse

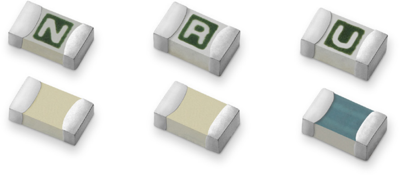

SMD fuse SMD 0603, 3.5 A, F, 32 V (DC), 50 A breaking capacity, 044103.5WR
Unit Price (€ / pc.)
0.9996 € *
Standard delivery time from the manufacturer is: 13 Weeks
Fuse, 044103.5WR, LITTELFUSE
This 100% lead-free, RoHS compliant and halogen-free fuse has been designed specifically to provide over current protection to circuits that see high working ambient temperatures up to 150ºC and high inrush currents. The fuse design ensures excellent temperature stability and performance reliability. This high I²t fuse is designed to have ultra-high inrush current withstand capability to avoid nuisance fuse open.
Features
- 100% lead-free, RoHS compliant and halogen-free
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Width | 0.85 mm | |
| Enclosure | SMD | |
| Rated voltage (DC) | 32 V | |
| Length | 1.58 mm | |
| Design | SMD 0603 | |
| Breaking capacity | 50 A | |
| Version | SMD fuse | |
| Height | 0.51 mm | |
| Rated current | 3.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
