0440.375WR | Littelfuse

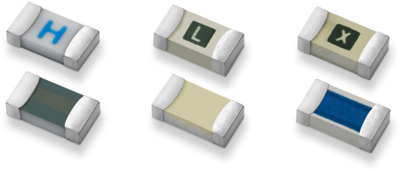

SMD fuse SMD 1206, 375 mA, F, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0440.375WR
Unit Price (€ / pc.)
0.8211 € *
Standard delivery time from the manufacturer is: 9 Weeks
Fuse, 0440.375WR, LITTELFUSE
This 100% RoHS compliant, lead-free and halogen-free fuse is designed specifically to provide over-current protection to circuits that operate under high working ambient temperatures up to 150 ºC and high inrush currents. The general design ensures excellent temperature stability and performance reliability. This high I²t fuse is designed to have ultra-high inrush current withstand capability to avoid nuisance fuse opening.
Features
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Design | SMD 1206 | |
| Version | SMD fuse | |
| Enclosure | SMD | |
| Rated current | 375 mA | |
| Tripping characteristics | F | |
| Rated voltage (DC) | 125 V | |
| Height | 0.84 mm | |
| Length | 3.2 mm | |
| Rated voltage (AC) | 125 V | |
| Breaking capacity | 50 A | |
| Width | 1.63 mm |
Download
Logistics
| Customs tariff number | 85361010 |
| Country of origin | PH |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
