043803.5WRA | Littelfuse
SMD fuse SMD 0603, 3.5 A, F, 32 V (DC), 32 V (AC), 50 A breaking capacity, 043803.5WRA
Unit Price (€ / pc.)
1.1543 € *
Standard delivery time from the manufacturer is: 13 Weeks

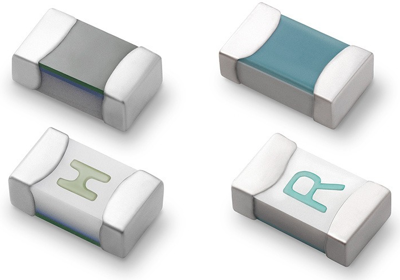

Fuse, 043803.5WRA, LITTELFUSE
The fuse is specifically tested to cater to the secondary circuit protection needs of compact autoelectronics applications. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensure high inrush current withstand capability.
Features
- 100% lead-free, RoHS compliant and halogen-free
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Design | SMD 0603 | |
| Version | SMD fuse | |
| Enclosure | SMD | |
| Rated current | 3.5 A | |
| Tripping characteristics | F | |
| Rated voltage (DC) | 32 V | |
| Height | 0.51 mm | |
| Length | 1.58 mm | |
| Rated voltage (AC) | 32 V | |
| Breaking capacity | 50 A | |
| Width | 0.85 mm |
Download
Logistics
| Customs tariff number | 85361010 |
| Country of origin | PH |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
