0438006.WR | Littelfuse

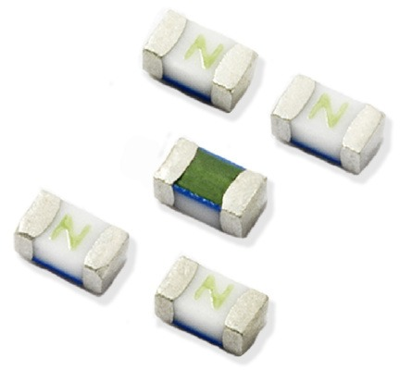

SMD fuse SMD 0603, 6 A, F, 24 V (DC), 50 A breaking capacity, 0438006.WR
Unit Price (€ / pc.)
1.0353 € *
Standard delivery time from the manufacturer is: 9 Weeks
Fuse, 0438006.WR, LITTELFUSE
This 100% lead-free, RoHS compliant and halogen-free fuse is designed specifically to provide overcurrent protection to circuits that operate under high working ambient temperature up to 150 ºC. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensures high inrush current withstand capability.
Features
- 100% lead-free, RoHS compliant and halogen-free
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Design | SMD 0603 | |
| Breaking capacity | 50 A | |
| Version | SMD fuse | |
| Height | 0.52 mm | |
| Rated current | 6 A | |
| Width | 0.83 mm | |
| Length | 1.58 mm | |
| Enclosure | SMD | |
| Rated voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
