0438005.WRA | Littelfuse

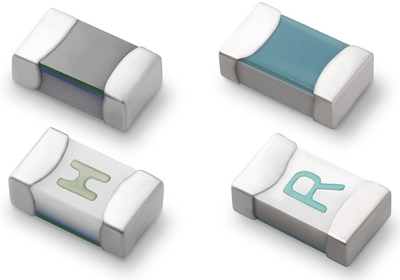

SMD fuse SMD 0603, 5 A, F, 32 V (DC), 12 V (AC), 50 A breaking capacity, 0438005.WRA
Unit Price (€ / pc.)
1.1543 € *
Standard delivery time from the manufacturer is: 13 Weeks
Fuse, 0438005.WRA, LITTELFUSE
The fuse is specifically tested to cater to the secondary circuit protection needs of compact autoelectronics applications. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensure high inrush current withstand capability.
Features
- 100% lead-free, RoHS compliant and halogen-free
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Design | SMD 0603 | |
| Breaking capacity | 50 A | |
| Version | SMD fuse | |
| Rated voltage (AC) | 12 V | |
| Height | 0.51 mm | |
| Rated current | 5 A | |
| Width | 0.85 mm | |
| Length | 1.58 mm | |
| Enclosure | SMD | |
| Rated voltage (DC) | 32 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
