0438002.WRGT | Littelfuse
SMD fuse SMD 0603, 2 A, F, 32 V (DC), 12 V (AC), 50 A breaking capacity, 0438002.WRGT
Unit Price (€ / pc.)
1.0353 € *
Standard delivery time from the manufacturer is: 13 Weeks

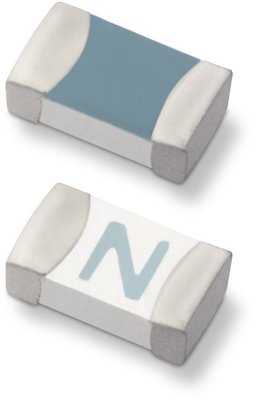

Fuse, 0438002.WRGT, LITTELFUSE
This 100% lead-free, RoHS compliant and halogen-free fuse is designed specifically to provide overcurrent protection to circuits that operate under high working ambient temperature up to 150 ºC. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensures high inrush current withstand capability.
Features
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 0.51 mm | |
| Rated current | 2 A | |
| Rated voltage (AC) | 12 V | |
| Version | SMD fuse | |
| Tripping characteristics | F | |
| Rated voltage (DC) | 32 V | |
| Breaking capacity | 50 A | |
| Width | 0.85 mm | |
| Enclosure | SMD | |
| Design | SMD 0603 | |
| Length | 1.58 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
