0438.500WR | Littelfuse
SMD fuse SMD 0603, 500 mA, F, 63 V (DC), 32 V (AC), 50 A breaking capacity, 0438.500WR
Unit Price (€ / pc.)
1.0353 € *
Standard delivery time from the manufacturer is: 9 Weeks

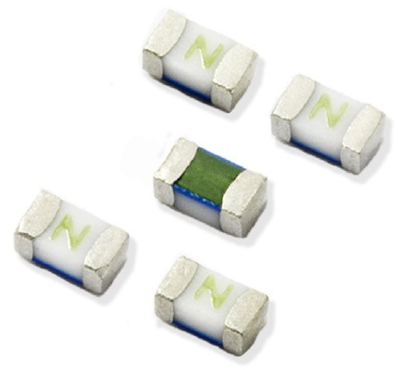

Fuse, 0438.500WR, LITTELFUSE
This 100% lead-free, RoHS compliant and halogen-free fuse is designed specifically to provide overcurrent protection to circuits that operate under high working ambient temperature up to 150 ºC. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensures high inrush current withstand capability.
Features
- 100% lead-free, RoHS compliant and halogen-free
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Design | SMD 0603 | |
| Version | SMD fuse | |
| Enclosure | SMD | |
| Rated current | 500 mA | |
| Tripping characteristics | F | |
| Rated voltage (DC) | 63 V | |
| Height | 0.52 mm | |
| Length | 1.58 mm | |
| Rated voltage (AC) | 32 V | |
| Breaking capacity | 50 A | |
| Width | 0.83 mm |
Download
Logistics
| Customs tariff number | 85361010 |
| Country of origin | PH |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
