0437005.WRA | Littelfuse

SMD fuse SMD 1206, 5 A, F, 32 V (DC), 32 V (AC), 50 A breaking capacity, 0437005.WRA

Order No.: 75P0393
EAN: 4099891872588
MPN:
0437005.WRA
Series: 437

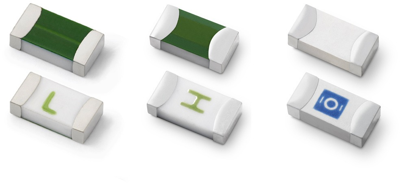

0437005.WRA Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
1.1662 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
3,498.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
1.1662 €

Fuse, 0437005.WRA, LITTELFUSE

The fuse is specifically tested to cater to the secondary circuit protection needs of compact autoelectronics applications. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensure high inrush current withstand capability.

Features

  • 100% lead-free, RoHS compliant and halogen-free
  • Fast response to faulty current to ensure over-current protection for sensitive electronic components
  • AEC-Q200 qualified
Technical specifications
Design SMD 1206
Version SMD fuse
Enclosure SMD
Rated current 5 A
Tripping characteristics F
Rated voltage (DC) 32 V
Height 0.84 mm
Length 3.2 mm
Rated voltage (AC) 32 V
Breaking capacity 50 A
Width 1.63 mm
Logistics
Customs tariff number 85361010
Country of origin PH
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
