0437.375WR | Littelfuse

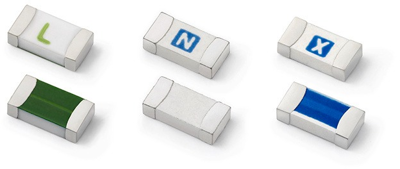

SMD fuse SMD 1206, 375 mA, F, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0437.375WR
Unit Price (€ / pc.)
0.8568 € *
Standard delivery time from the manufacturer is: 13 Weeks
Fuse, 0437.375WR, LITTELFUSE
This 100% lead-free, RoHS compliant and halogen-free fuse has been designed specifically to provide over current protection to circuits that might encounter high working ambient temperatures up to 150ºC. The general design ensures excellent temperature stability and performance reliability. In addition to this, the high I²t values ensure high inrush current withstand capability.
Features
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Design | SMD 1206 | |
| Version | SMD fuse | |
| Enclosure | SMD | |
| Rated current | 375 mA | |
| Tripping characteristics | F | |
| Rated voltage (DC) | 125 V | |
| Height | 0.84 mm | |
| Length | 3.2 mm | |
| Rated voltage (AC) | 125 V | |
| Breaking capacity | 50 A | |
| Width | 1.63 mm |
Download
Logistics
| Customs tariff number | 85361010 |
| Country of origin | PH |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
