0437.250WR | Littelfuse

SMD-Fuse SMD 1206, 250 mA, F, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0437.250WR

Order No.: 75P0378
EAN: 4099891872434
MPN:
0437.250WR
Series: 437
0437.250WR Littelfuse Micro Fuses

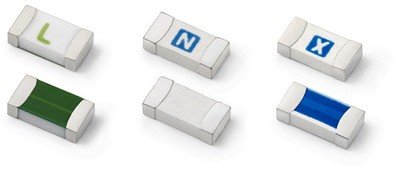

Image may differ
Unit Price (€ / pc.)
0.8568 € *
Available: 0 pcs.
Available in 4 Days: 42,000 pcs.
Leadtime: 13 Weeks **
Total Price:
2,570.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
0.8568 €

Fuse, 0437.250WR, LITTELFUSE

This 100% lead-free, RoHS compliant and halogen-free fuse has been designed specifically to provide over current protection to circuits that might encounter high working ambient temperatures up to 150ºC. The general design ensures excellent temperature stability and performance reliability. In addition to this, the high I²t values ensure high inrush current withstand capability.

Features

  • Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
Version SMD-Fuse
Length 3.2 mm
Width 1.63 mm
Height 0.84 mm
Enclosure SMD
Rated voltage (AC) 125 V
Rated current 250 mA
Tripping characteristics F
Rated voltage (DC) 125 V
Breaking capacity 50 A
Design SMD 1206
Logistics
Customs tariff number 85361010
Country of origin PH
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
