0326008.VXP | Littelfuse
Microfuse 6.3 x 32 mm, 8 A, T, 250 V (AC), 400 A breaking capacity, 0326008.VXP
Unit Price (€ / pc.)
4.4387 € *
Standard delivery time from the manufacturer is: 15 Weeks

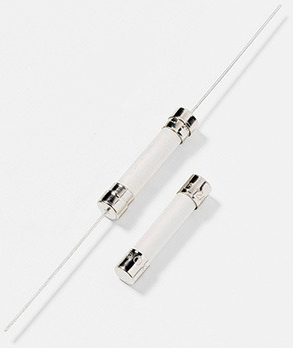

Slo-Blo fuse, 0326008.VXP, Littelfuse
The 3AB Slo-Blo fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected. It is also used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | T | |
| Rated voltage (AC) | 250 V | |
| Enclosure | ceramic tube | |
| Length | 31.75 mm | |
| Design | 6.3 x 32 mm | |
| Breaking capacity | 400 A | |
| diameter | 6.35 mm | |
| Version | microfuse | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
