0314020.MXP | Littelfuse

Microfuse 6.3 x 32 mm, 20 A, F, 250 V (AC), 200 A breaking capacity, 0314020.MXP

Order No.: 55P6362
EAN: 4099889099096
MPN:
0314020.MXP
Series: 314
0314020.MXP Littelfuse Micro Fuses

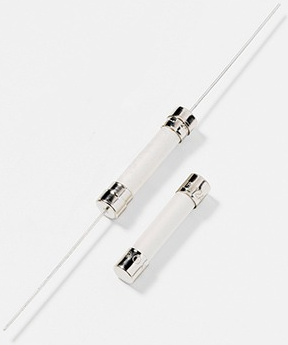

Image may differ
Unit Price (€ / pc.)
0.5355 € *
Available in 4 Days: 275,000 pcs. - if ordered today
Total Price:
535.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.5355 €

Fuse, 0314020.MXP, Littelfuse

The 3AB fast-acting fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.

Features

  • In accordance with UL Standard 248-14
  • Available in cartridge and axial lead format and with various forming dimensions
  • RoHS compliant and Lead-free
Technical specifications
Enclosure ceramic tube
Rated current 20 A
diameter 6.35 mm
Tripping characteristics F
Length 31.75 mm
Breaking capacity 200 A
Rated voltage (AC) 250 V
Version microfuse
Design 6.3 x 32 mm
Logistics
Country of origin CN
Customs tariff number 85361010
Original Packaging Bulk with 1,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
