0314015.MXP | Littelfuse
Microfuse 6.3 x 32 mm, 15 A, F, 250 V (AC), 750 A breaking capacity, 0314015.MXP
Unit Price (€ / pc.)
0.4284 € *
Standard delivery time from the manufacturer is: 15 Weeks

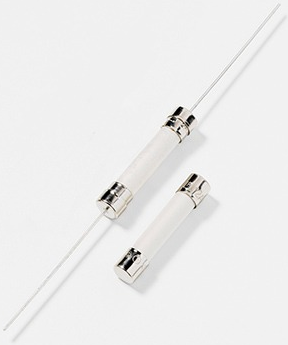

Fuse, 0314015.MXP, Littelfuse
The 3AB fast-acting fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Features
- In accordance with UL Standard 248-14
- Available in cartridge and axial lead format and with various forming dimensions
- RoHS compliant and Lead-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Design | 6.3 x 32 mm | |
| Breaking capacity | 750 A | |
| Version | microfuse | |
| Rated voltage (AC) | 250 V | |
| Rated current | 15 A | |
| Length | 31.75 mm | |
| diameter | 6.35 mm | |
| Enclosure | ceramic tube |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361010 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
