0314.500VXP | Littelfuse
Microfuse 6.3 x 32 mm, 500 mA, F, 125 V (DC), 250 V (AC), 35 A breaking capacity, 0314.500VXP
Unit Price (€ / pc.)
3.0702 € *
Standard delivery time from the manufacturer is: 15 Weeks

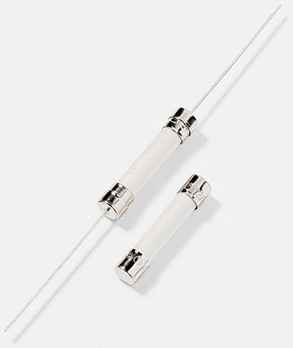

Fast-acting fuse, 0314.500VXP, Littelfuse
The 3AB Fast-Acting fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected. It is also used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 125 V | |
| Enclosure | ceramic tube | |
| Breaking capacity | 35 A | |
| Rated voltage (AC) | 250 V | |
| Design | 6.3 x 32 mm | |
| diameter | 6.35 mm | |
| Tripping characteristics | F | |
| Version | microfuse | |
| Length | 31.75 mm | |
| Rated current | 500 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
