03121.25HXP | Littelfuse

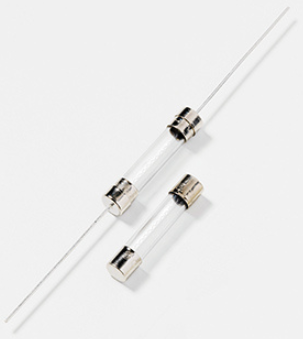

Microfuse 6.3 x 32 mm, 1.25 A, F, 250 V (AC), 100 A breaking capacity, 03121.25HXP

Order No.: 74P9692
EAN: 4099891865573
MPN:
03121.25HXP
Series: 312
03121.25HXP Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.2820 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
28.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
0.2820 €

Fast-acting fuse, 03121.25HXP, Littelfuse

The 3AG Fast-Acting fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.

Technical specifications
Filter Property Value
Tripping characteristics F
Design 6.3 x 32 mm
Breaking capacity 100 A
Version microfuse
Rated voltage (AC) 250 V
Rated current 1.25 A
Length 31.75 mm
diameter 6.35 mm
Enclosure glass tube
Logistics
Property Value
Country of origin CN
Customs tariff number 85361010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
