0312030.HXP | Littelfuse

Microfuse 6.3 x 32 mm, 30 A, F, 32 V (AC), 300 A breaking capacity, 0312030.HXP

Order No.: 74P9686
EAN: 4099891865511
MPN:
0312030.HXP
Series: 312
0312030.HXP Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.5355 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
53.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
0.5355 €

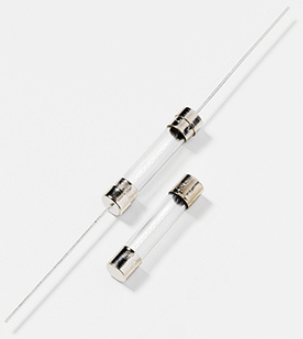

Fast-acting fuse, 0312030.HXP, Littelfuse

The 3AG Fast-Acting fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.

Technical specifications
Filter Property Value
Tripping characteristics F
Design 6.3 x 32 mm
Breaking capacity 300 A
Version microfuse
Rated voltage (AC) 32 V
Rated current 30 A
Length 31.75 mm
diameter 6.35 mm
Enclosure glass tube
Logistics
Property Value
Country of origin CN
Customs tariff number 85361050
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
