0259.125T | Littelfuse

Micro fuse 13 x 8 mm, 125 mA, F, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0259.125T

Order No.: 42G9510
EAN: 4099889087758
MPN:
0259.125T
Series: 259

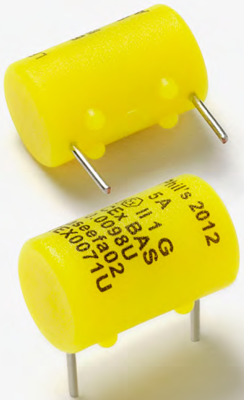

0259.125T Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
5.1765 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
2,588.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
5.1765 €

Micro fuse, 0259.125T, Littelfuse

The 0259.125T offers a range of encapsulated fuse designed to enable greater safety for operating electronic equipment within potentially explosive environments. Originally designed to serve the needs of gas plants, petrochemical and processing industries, this fuse is certitifed for use within intrinsically safe apparatus with ATEX and IECEx certifications.

Features

  • Encapsulated and sealed (1mm minimum)
  • 0.062A - 5A range options
  • ATEX and IECEx certified components
  • RoHS compliant
Technical specifications
Filter Property Value
Rated voltage (DC) 125 V
Rated current 125 mA
diameter 8 mm
Tripping characteristics F
Length 13 mm
Breaking capacity 50 A
Rated voltage (AC) 125 V
Version micro fuse
Design 13 x 8 mm
Logistics
Property Value
Country of origin PH
Customs tariff number 85361010
Original Packaging Bulk with 10 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
