0259.062T | Littelfuse
Micro fuse 13 x 8 mm, 62 mA, F, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0259.062T
Unit Price (€ / pc.)
5.1765 € *
Standard delivery time from the manufacturer is: 8 Weeks

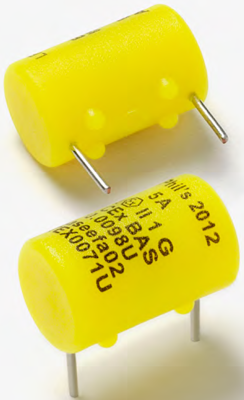

Micro fuse, 0259.062T, Littelfuse
The 0259.062T offers a range of encapsulated fuse designed to enable greater safety for operating electronic equipment within potentially explosive environments. Originally designed to serve the needs of gas plants, petrochemical and processing industries, this fuse is certitifed for use within intrinsically safe apparatus with ATEX and IECEx certifications.
Features
- Encapsulated and sealed (1mm minimum)
- 0.062A - 5A range options
- ATEX and IECEx certified components
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 125 V | |
| Rated current | 62 mA | |
| diameter | 8 mm | |
| Tripping characteristics | F | |
| Length | 13 mm | |
| Breaking capacity | 50 A | |
| Rated voltage (AC) | 125 V | |
| Version | micro fuse | |
| Design | 13 x 8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85361010 |
| Original Packaging | Bulk with 10 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
