0242.100UR | Littelfuse

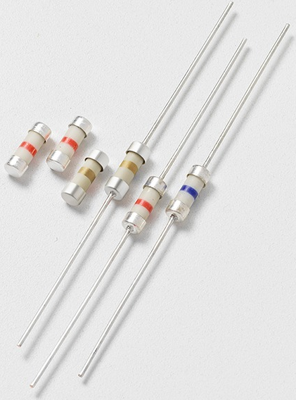

Microfuse 3.02 x 8.4 mm, 100 mA, F, 250 V (DC), 250 V (AC), 4 kA breaking capacity, 0242.100UR
Unit Price (€ / pc.)
4.3078 € *
Standard delivery time from the manufacturer is: 8 Weeks
SMD-Fuse, 0242.100UR, Littelfuse
The 0242.100UR fuse is designed for barrier circuits in intrinsic safety applications relating to hazardous locations.This product provides overcurrent protection solutions to fit many hazardous location in barrier applications.
Features
- High interrupting rating suitable for intrinsic safety protection of hazardous locations equipment
- Available in both axial lead and surface mount
- RoHS compliant and Halogen-free
Applications
- Intrinsic saftey electrical equipment, electrical connections and components and test equipment
- Barriers providing intrinsically safe outputs to hazardous locations
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 3.02 mm | |
| Rated voltage (DC) | 250 V | |
| Rated voltage (AC) | 250 V | |
| Length | 8.4 mm | |
| Tripping characteristics | F | |
| Breaking capacity | 4 kA | |
| Design | 3.02 x 8.4 mm | |
| Enclosure | ceramic tube | |
| Version | microfuse | |
| Rated current | 100 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
