0239.150MXP | Littelfuse
Microfuse 5 x 20 mm, 150 mA, T, 250 V (AC), 35 A breaking capacity, 0239.150MXP
Unit Price (€ / pc.)
1.071 € *
Standard delivery time from the manufacturer is: 15 Weeks

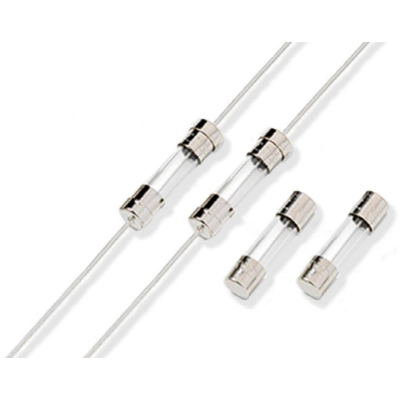

Slo-Blo Fuse, 0239.150MXP, Littelfuse
The 0239.150MXP is a 5×20 mm Slo-Blo glass body cartridge fuse designed to UL specification. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 35 A | |
| Enclosure | glass tube | |
| diameter | 5.2 mm | |
| Rated voltage (AC) | 250 V | |
| Version | microfuse | |
| Tripping characteristics | T | |
| Design | 5 x 20 mm | |
| Length | 20 mm | |
| Rated current | 150 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
