0216010.MXEP | Littelfuse
Microfuse 5 x 20 mm, 10 A, F, 250 V (AC), 1.5 kA breaking capacity, 0216010.MXEP
Unit Price (€ / pc.)
0.3451 € *
Available: 1,000 pcs.
Available in 4 Days: 1,000 pcs. - if ordered today

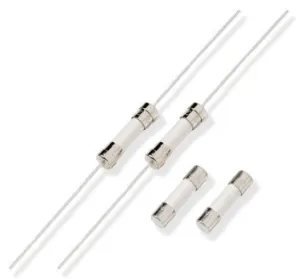

Fast-acting fuse, 0216010.MXEP, Littelfuse
The 0216010.MXEP is a 5x20 mm fast-acting ceramic body cartridge fuse designed to IEC specification. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | ceramic tube | |
| Breaking capacity | 1.5 kA | |
| Rated voltage (AC) | 250 V | |
| Design | 5 x 20 mm | |
| diameter | 5.5 mm | |
| Tripping characteristics | F | |
| Version | microfuse | |
| Length | 21.5 mm | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
