0216.050MXGP | Littelfuse
Microfuse 5 x 20 mm, 50 mA, F, 250 V (AC), 1.5 kA breaking capacity, 0216.050MXGP
Unit Price (€ / pc.)
1.4994 € *
Standard delivery time from the manufacturer is: 19 Weeks

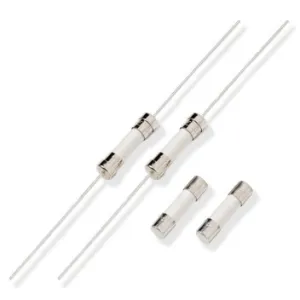

Fast-acting fuse, 0216.050MXGP, Littelfuse
The 0216.050MXGP is a 5x20 mm fast-acting ceramic body cartridge fuse designed to IEC specification. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | ceramic tube | |
| Breaking capacity | 1.5 kA | |
| Rated voltage (AC) | 250 V | |
| Design | 5 x 20 mm | |
| diameter | 5.2 mm | |
| Tripping characteristics | F | |
| Version | microfuse | |
| Length | 20 mm | |
| Rated current | 50 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
