0157.500DRT | Littelfuse

SMD fuse 3.7 x 6.5 mm, 500 mA, T, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0157.500DRT

Order No.: 55P2699
EAN: 4099889096835
MPN:
0157.500DRT
Series: 157

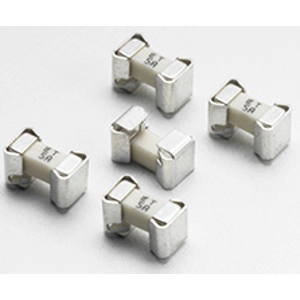

0157.500DRT Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
3.2249 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
4,837.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1500 pcs.
3.2249 €

SMD-Fuse, 0157.500DRT, Littelfuse

The 0157.500DRT is a small, square, slow, surface mount fuse that is assembled in surface mountable fuse clips. The fuse clip and pre-installed fuse combination can be automatically placed in PC Board in one efficient manufacturing operation. It permits quick and easy replacement of fuses without performing desoldering process, even in the field and without exposing the PC Board to detrimental effects of rework solder heat.

Features

  • Surface Mountable
  • Slow Fuse
  • RoHS compliant and Halogen Free
Technical specifications
Design 3.7 x 6.5 mm
Version SMD fuse
Enclosure SMD
Rated current 500 mA
Tripping characteristics T
Rated voltage (DC) 125 V
Height 2.69 mm
Length 6.5 mm
Rated voltage (AC) 125 V
Breaking capacity 50 A
Width 3.7 mm
Logistics
Original Packaging Reel with 1,500 pieces
Customs tariff number 85369095
Country of origin PH
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
