IXYX50N170C | Littelfuse

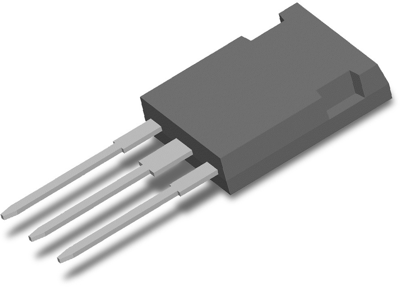

IGBT, 1700 V, 170 A, TO-247 PLUS, Littelfuse IXYX50N170C
Order No.: 74P0952
EAN: 4099891778170
MPN:
IXYX50N170C
Unit Price (€ / pc.)
27.0606 € *
Standard delivery time from the manufacturer is: 39 Weeks
IGBT, IXYX50N170C, Littelfuse
High voltage IGBT with high current handling capability, high power density and low gate drive requirement.
Features
- High blocking voltage
- Low saturation voltage
Applications
- Switch-mode and resonant-mode power supplies
- Uninterruptible power supplies (UPS)
- Laser generators
- Capacitor discharge circuits
- AC switches
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 175 °C | |
| Switching loss at switch-on Eon typ. | 11.9 J | |
| max. Voltage | 1700 V | |
| Switching loss b. switch off Eoff typ. | 8.2 J | |
| Max. current | 170 A | |
| Saturation voltage | 3.7 V | |
| min. operating temperature | -55 °C | |
| Power dissipation | 1500 W | |
| Assembly | THT | |
| Enclosure | TO-247 PLUS | |
| Version | single |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
