IXYT30N65C3H1HV | Littelfuse

IGBT, 650 V, 60 A, TO-268HVU, Littelfuse IXYT30N65C3H1HV

Order No.: 74P0943
EAN: 4099891778088
MPN:
IXYT30N65C3H1HV
IXYT30N65C3H1HV Littelfuse IGBTs

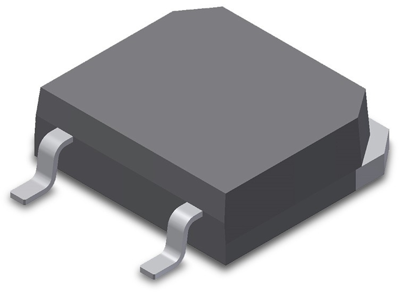

Image may differ
Unit Price (€ / pc.)
7.0329 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
2,109.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
7.0329 €

IGBT, IXYT30N65C3H1HV, Littelfuse

Extreme light punch through IGBT, optimized for 20-60kHz switching with high power density, is extremely rugged, and has a low gate drive requirement.

Features

  • Square RBSOA
  • Avalanche rated
  • Short circuit capability
  • Anti-parallel sonic diode
  • High voltage

Applications

  • High frequency power inverters
  • Power inverters
  • UPS
  • Motor drives
  • SMPS
  • PFC circuits
  • Battery chargers
  • Welding machines
  • Lamp ballasts
Technical specifications
Filter Property Value
max. Voltage 650 V
Saturation voltage 2.7 V
Assembly SMD
Enclosure TO-268HVU
Switching loss b. switch off Eoff typ. 0.41 J
Max. current 60 A
Version single
Switching loss at switch-on Eon typ. 1.5 J
min. operating temperature -55 °C
max. operating temperature 175 °C
Power dissipation 270 W
Logistics
Property Value
Country of origin KR
Customs tariff number 85411000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
