IXYQ40N65B3D1 | Littelfuse

IGBT, 650 V, 86 A, TO-3PU, Littelfuse IXYQ40N65B3D1

Order No.: 74P0939
EAN: 4099891778040
MPN:
IXYQ40N65B3D1
IXYQ40N65B3D1 Littelfuse IGBTs

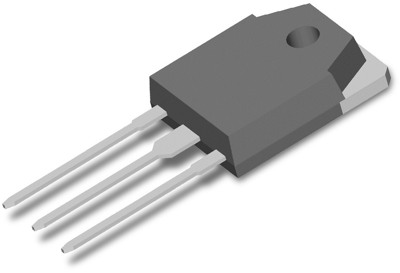

Image may differ
Unit Price (€ / pc.)
8.1158 € *
Available: 0 pcs.
Leadtime: 46 Weeks **
Total Price:
2,434.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
8.1158 €

IGBT, IXYQ40N65B3D1, Littelfuse

Extreme light punch through IGBT, optimized for 5-30kHz switching with high power density, is extremely rugged, and has a low gate drive requirement.

Features

  • Square RBSOA
  • Avalanche rated
  • Short circuit capability
  • Anti-parallel sonic diode

Applications

  • Power inverters
  • UPS
  • Motor drives
  • SMPS
  • PFC circuits
  • Battery chargers
  • Welding machines
  • Lamp ballasts
Technical specifications
max. Voltage 650 V
Saturation voltage 2 V
Assembly THT
Enclosure TO-3PU
Switching loss b. switch off Eoff typ. 1.15 J
Max. current 86 A
Version single
Switching loss at switch-on Eon typ. 1.6 J
min. operating temperature -55 °C
max. operating temperature 175 °C
Power dissipation 300 W
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
