IXYK200N65B3 | Littelfuse

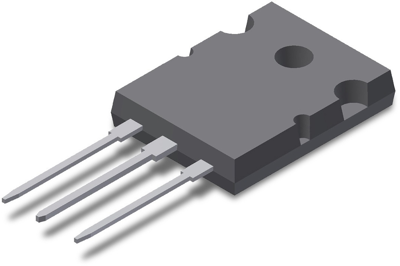

IGBT, 650 V, 410 A, TO-264, Littelfuse IXYK200N65B3
Order No.: 74P0909
EAN: 4099891777746
MPN:
IXYK200N65B3
Unit Price (€ / pc.)
18.3974 € *
Standard delivery time from the manufacturer is: 46 Weeks
IGBT, IXYK200N65B3, Littelfuse
Extreme light punch through IGBT, optimized for 10-30 kHz switching with high power density and low gate drive requirements.
Features
- Square RBSOA
- Avalanche rated
- International standard package
- High current handling capability
- Short circuit capability
Applications
- Power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- Welding machines
- Lamp ballasts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 175 °C | |
| Switching loss at switch-on Eon typ. | 6.36 J | |
| max. Voltage | 650 V | |
| Switching loss b. switch off Eoff typ. | 2.6 J | |
| Max. current | 410 A | |
| Saturation voltage | 1.7 V | |
| min. operating temperature | -55 °C | |
| Power dissipation | 1560 W | |
| Assembly | THT | |
| Enclosure | TO-264 | |
| Version | single |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
