IXYH40N120A4 | Littelfuse

IGBT, 1200 V, 140 A, TO-247, Littelfuse IXYH40N120A4

Order No.: 74P0885
EAN: 4099891777500
MPN:
IXYH40N120A4
IXYH40N120A4 Littelfuse IGBTs

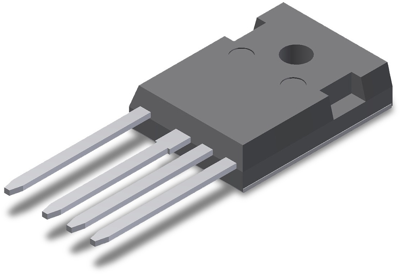

Image may differ
Unit Price (€ / pc.)
7.0924 € *
Available: 0 pcs.
Leadtime: 61 Weeks **
Total Price:
2,127.72 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
7.0924 €

IGBT, IXYH40N120A4, Littelfuse

Ultra low-Vsat PT IGBT for up to 5 kHz switching, optimized for low conduction with high power density and low gate drive requirements.

Features

  • Positive thermal coefficient of Vce(sat)
  • International standard package

Applications

  • Power inverters
  • Inrush current protection circuits
  • UPS
  • Motor drives
  • SMPS
  • PFC circuits
  • Battery chargers
  • Welding machines
  • Lamp ballasts
Technical specifications
max. Voltage 1200 V
Saturation voltage 1.8 V
Assembly THT
Enclosure TO-247
Switching loss b. switch off Eoff typ. 6.46 J
Max. current 140 A
Version single
Switching loss at switch-on Eon typ. 3.55 J
min. operating temperature -55 °C
max. operating temperature 175 °C
Power dissipation 600 W
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
