IXXX100N60C3H1 | Littelfuse

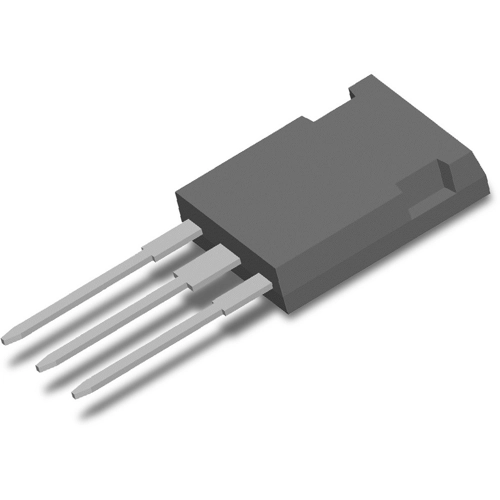

IGBT, 600 V, 170 A, TO-247 PLUS, Littelfuse IXXX100N60C3H1
Order No.: 74P0861
EAN: 4099891777265
MPN:
IXXX100N60C3H1
Unit Price (€ / pc.)
16.3863 € *
Standard delivery time from the manufacturer is: 46 Weeks
IGBT, IXXX100N60C3H1, Littelfuse
Extreme light punch through IGBT, optimized for 20-60 kHz switching with short circuit capability and high current handling capability.
Features
- Square RBSOA
- Avalanche rated
- International standard package
- Anti-parallel ultra fast diode
- High power density
Applications
- Power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- Welding machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| Switching loss at switch-on Eon typ. | 3 J | |
| max. Voltage | 600 V | |
| Switching loss b. switch off Eoff typ. | 1.4 J | |
| Max. current | 170 A | |
| Saturation voltage | 2.2 V | |
| min. operating temperature | -55 °C | |
| Power dissipation | 695 W | |
| Assembly | THT | |
| Enclosure | TO-247 PLUS |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
