IXGT72N60A3 | Littelfuse

Name: IGBT, 600 V, 75 A, TO-268S, Littelfuse IXGT72N60A3
Brand: Littelfuse
SKU: 74P0822
Availability: OutOfStock

IGBT, 600 V, 75 A, TO-268S, Littelfuse IXGT72N60A3

Order No.: 74P0822

EAN: 4099891776879

MPN:

IXGT72N60A3

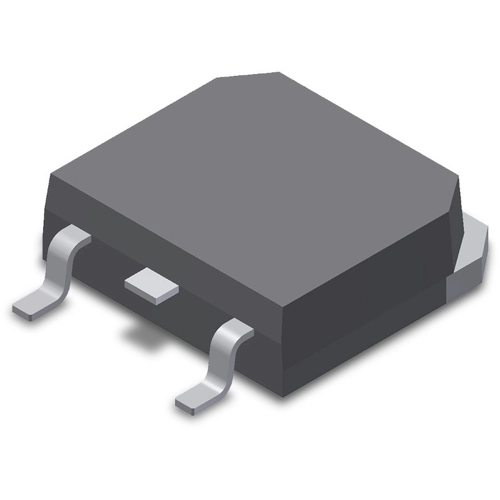

Image may differ

Key Specification:

Assembly SMD

Enclosure TO-268S

Version single

max. Voltage 600 V

Max. current 75 A

Show 15 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.6858 € *

Standard delivery time from the manufacturer is: 37 Weeks

Total Price:

3,505.74 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

IGBT, IXGT72N60A3, LITTELFUSE

Ultra-low Vsat PT IGBT for up to 5 kHz switching, optimized for low conduction losses, and with advantages such as high power density, and low gate drive requirements.

Features

Square RBSOA
International standard package

Applications

Power inverters
UPS
Motor drives
SMPS
PFC circuits
Battery chargers
Welding machines
Lamp ballasts
Inrush current protection circuits

Technical specifications

	max. Voltage	600 V
	Saturation voltage	1.35 V
	Assembly	SMD
	Enclosure	TO-268S
	Switching loss b. switch off Eoff typ.	6.5 J
	Max. current	75 A
	Version	single
	Switching loss at switch-on Eon typ.	2.6 J
	min. operating temperature	-55 °C
	max. operating temperature	150 °C
	Power dissipation	540 W

Articles of same specification 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	PH
Customs tariff number	85411000

Compliance

Date of RoHS guidelines	3/31/15
SVHC free	Yes
RoHS conform	Yes

1 item in 15 variations
