IXGT6N170 | Littelfuse

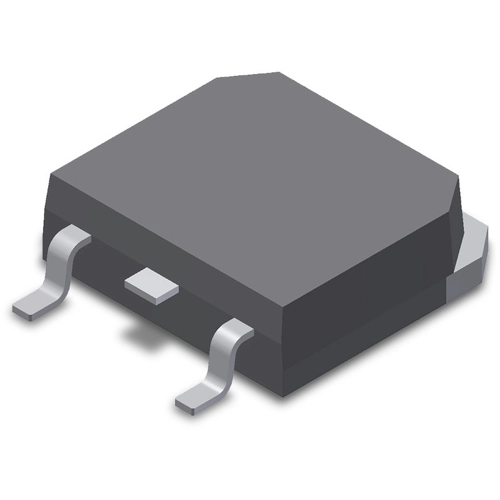

IGBT, 1700 V, 12 A, TO-268S, Littelfuse IXGT6N170
Order No.: 74P0819
EAN: 4099891776848
MPN:
IXGT6N170
Unit Price (€ / pc.)
12.5664 € *
Standard delivery time from the manufacturer is: 39 Weeks
IGBT, IXGT6N170, LITTELFUSE
A high voltage IGBT with an international standard package, and advantages such as high power density, and low gate drive requirements.
Applications
- Capacitor discharge and pulser circuits
- Uninterruptible power supplies (UPS)
- Motor drives
- DC servo and robot drives
- DC choppers
- Switch-mode and resonant-mode power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| Switching loss at switch-on Eon typ. | 0.5 J | |
| max. Voltage | 1700 V | |
| Switching loss b. switch off Eoff typ. | 2 J | |
| Max. current | 12 A | |
| Saturation voltage | 4 V | |
| min. operating temperature | -55 °C | |
| Power dissipation | 75 W | |
| Assembly | SMD | |
| Enclosure | TO-268S | |
| Version | single |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
