IXGT30N120B3D1 | Littelfuse

IGBT, 1200 V, 50 A, TO-268SU, Littelfuse IXGT30N120B3D1

Order No.: 74P0815
EAN: 4099891776800
MPN:
IXGT30N120B3D1
IXGT30N120B3D1 Littelfuse IGBTs

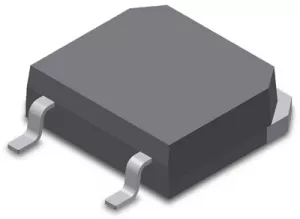

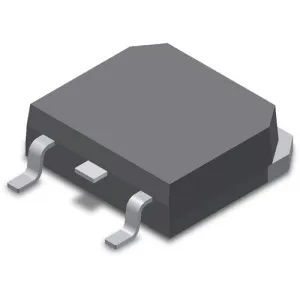

Image may differ
Unit Price (€ / pc.)
17.9809 € *
Standard delivery time from the manufacturer is: 61 Weeks
Total Price:
5,394.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
17.9809 €

IGBT, IXGT30N120B3D1, LITTELFUSE

High speed low Vsat PT IGBTs 3-20 kHz switching, optimized for low conduction and switching losses, and with advantages such as high power density, and low gate drive requirements.

Features

  • Square RBSOA
  • Anti-parallel ultra fast diode
  • International standard package

Applications

  • Power inverters
  • UPS
  • Motor drives
  • SMPS
  • PFC circuits
  • Welding machines
Technical specifications
max. Voltage 1200 V
Saturation voltage 3.5 V
Assembly SMD
Enclosure TO-268SU
Switching loss b. switch off Eoff typ. 5.1 J
Max. current 50 A
Version single
Switching loss at switch-on Eon typ. 6.7 J
min. operating temperature -55 °C
max. operating temperature 150 °C
Power dissipation 300 W
Logistics
Country of origin PH
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
