IXGR72N60B3H1 | Littelfuse

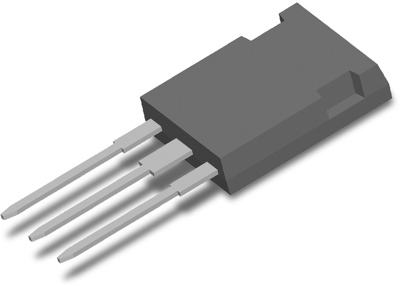

IGBT, 600 V, 80 A, TO-247IU, Littelfuse IXGR72N60B3H1
Order No.: 74P0807
EAN: 4099891776725
MPN:
IXGR72N60B3H1
Unit Price (€ / pc.)
20.6227 € *
Standard delivery time from the manufacturer is: 37 Weeks
IGBT, IXGR72N60B3H1, LITTELFUSE
Medium-speed low-Vsat PT IGBT for 5-40 kHz switching, optimized for low conduction and switching losses, and with advantages such as high power density, and low gate drive requirements.
Features
- Square RBSOA
- Silicon chip on direct-copper bond (DCB) substrate
- Isolated mounting surface
- 2500 V electrical isolation
- Anti-parallel ultra fast diode
Applications
- Power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- Welding machines
- Lamp ballasts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Voltage | 600 V | |
| Saturation voltage | 1.8 V | |
| Enclosure | TO-247IU | |
| Max. current | 80 A | |
| Power dissipation | 200 W | |
| max. operating temperature | 150 °C | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Switching loss b. switch off Eoff typ. | 2.2 J | |
| Version | single | |
| Switching loss at switch-on Eon typ. | 2.7 J |
