IXGK100N170 | Littelfuse

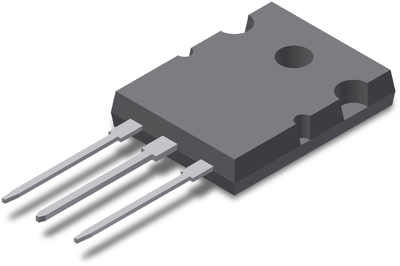

IGBT, 1700 V, 100 A, TO-264, Littelfuse IXGK100N170
Order No.: 74P0781
EAN: 4099891776466
MPN:
IXGK100N170
Unit Price (€ / pc.)
68.2108 € *
Standard delivery time from the manufacturer is: 39 Weeks
IGBT, IXGK100N170, LITTELFUSE
A high voltage IGBT optimized for low conduction and switching losses, with advantages such as high power density, and low gate drive requirements.
Features
- Short circuit capability
- High current handling capability
Applications
- Power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Welding machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| max. Voltage | 1700 V | |
| Max. current | 100 A | |
| Saturation voltage | 3 V | |
| min. operating temperature | -55 °C | |
| Power dissipation | 830 W | |
| Assembly | THT | |
| Enclosure | TO-264 | |
| Version | single |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
