IXGH36N60B3 | Littelfuse

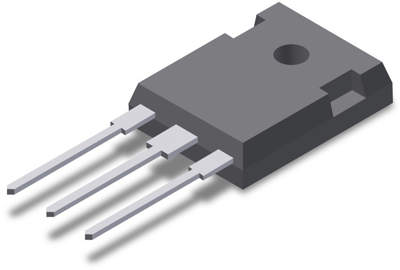

Name: IGBT, 600 V, 36 A, TO-247, Littelfuse IXGH36N60B3
Brand: Littelfuse
SKU: 74P0770
Availability: OutOfStock

IGBT, 600 V, 36 A, TO-247, Littelfuse IXGH36N60B3

Order No.: 74P0770

EAN: 4099891776350

MPN:

IXGH36N60B3

Image may differ

Key Specification:

Assembly THT

Enclosure TO-247

Version single

max. Voltage 600 V

Max. current 36 A

Show 20 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3.3558 € *

Standard delivery time from the manufacturer is: 37 Weeks

Total Price:

1,006.74 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

IGBT, IXGH36N60B3, LITTELFUSE

Medium-speed low-Vsat PT IGBT for 5-40 kHz switching, optimized for low conduction and switching losses, and with advantages such as high power density, and low gate drive requirements.

Features

Square RBSOA
International standard package

Applications

Power inverters
UPS
Motor drives
SMPS
PFC circuits
Welding machines
Lamp ballasts

Technical specifications

	max. Voltage	600 V
	Saturation voltage	1.8 V
	Assembly	THT
	Enclosure	TO-247
	Switching loss b. switch off Eoff typ.	0.9 J
	Max. current	36 A
	Version	single
	Switching loss at switch-on Eon typ.	0.22 J
	min. operating temperature	-55 °C
	max. operating temperature	150 °C
	Power dissipation	190 W

Articles of same specification 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	KR
Customs tariff number	85411000

Compliance

Date of RoHS guidelines	3/31/15
SVHC free	Yes
RoHS conform	Yes

1 item in 20 variations

*incl. VAT plus shipping costs
