IXGH30N120B3D1 | Littelfuse

Name: IGBT, 1200 V, 30 A, TO-247U, Littelfuse IXGH30N120B3D1
Brand: Littelfuse
SKU: 74P0766
Availability: OutOfStock

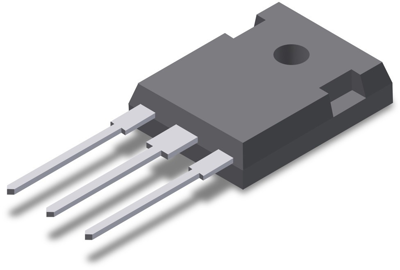

IGBT, 1200 V, 30 A, TO-247U, Littelfuse IXGH30N120B3D1

Order No.: 74P0766

EAN: 4099891776312

MPN:

IXGH30N120B3D1

Image may differ

Key Specification:

Assembly THT

Enclosure TO-247U

Version single

max. Voltage 1200 V

Max. current 30 A

Show 20 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.1384 € *

Standard delivery time from the manufacturer is: 61 Weeks

Total Price:

3,341.52 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

IGBT, IXGH30N120B3D1, LITTELFUSE

High speed low Vsat PT IGBTs 3-20 kHz switching, optimized for low conduction and switching losses, and with advantages such as high power density, and low gate drive requirements.

Features

Square RBSOA
Anti-parallel ultra fast diode
International standard package

Applications

Power inverters
UPS
Motor drives
SMPS
PFC circuits
Welding machines

Technical specifications

	max. Voltage	1200 V
	Saturation voltage	3.4 V
	Assembly	THT
	Enclosure	TO-247U
	Switching loss b. switch off Eoff typ.	5.1 J
	Max. current	30 A
	Version	single
	Switching loss at switch-on Eon typ.	6.7 J
	min. operating temperature	-55 °C
	max. operating temperature	150 °C
	Power dissipation	300 W

Articles of same specification 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	KR
Customs tariff number	85411000

Compliance

Date of RoHS guidelines	3/31/15
SVHC free	Yes
RoHS conform	Yes

1 item in 20 variations

*incl. VAT plus shipping costs
