IXGF32N170 | Littelfuse

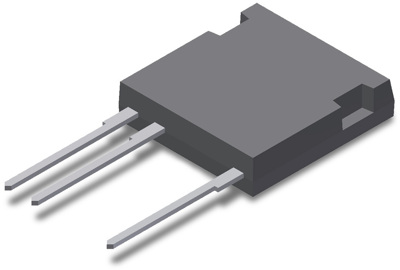

IGBT, 1700 V, 19 A, I4-PAK, Littelfuse IXGF32N170
Order No.: 74P0752
EAN: 4099891776176
MPN:
IXGF32N170
Unit Price (€ / pc.)
21.4914 € *
Standard delivery time from the manufacturer is: 42 Weeks
IGBT, IXGF32N170, LITTELFUSE
A high voltage IGBT with high peak current capability, an electrically isolated tab, high power density, and suitable for surface mounting.
Features
- Rugged NPT structure
- Molding epoxies meet UL 94 V-0 flammability classification
Applications
- Capacitor discharge and pulser circuits
- AC motor drives
- Uninterruptible power supplies (UPS)
- Switch-mode and resonant-mode power supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| Switching loss at switch-on Eon typ. | 6 J | |
| max. Voltage | 1700 V | |
| Switching loss b. switch off Eoff typ. | 13.8 J | |
| Max. current | 19 A | |
| Saturation voltage | 3.5 V | |
| min. operating temperature | -55 °C | |
| Power dissipation | 200 W | |
| Assembly | THT | |
| Enclosure | I4-PAK | |
| Version | single |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
