IXGF25N250 | Littelfuse

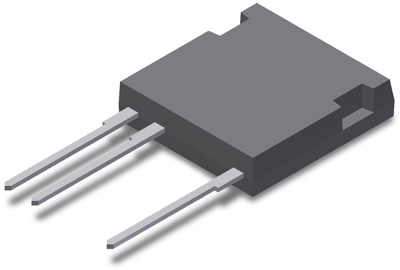

IGBT, 2500 V, 30 A, I4-PAK, Littelfuse IXGF25N250
Order No.: 74P0751
EAN: 4099891776169
MPN:
IXGF25N250
Unit Price (€ / pc.)
115.7989 € *
Standard delivery time from the manufacturer is: 42 Weeks
IGBT, IXGF25N250, LITTELFUSE
A high voltage IGBT with high peak current capability, an electrically isolated tab, and a low saturation voltage.
Features
- UL recognized package
- MOS gate turn-on - drive simplicity
- Rugged NPT structure
- Molding epoxies meet UL 94 V-0 flammability classification
- High power density
- Easy to mount
Applications
- Capacitor discharge
- Pulse circuits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| max. Voltage | 2500 V | |
| Max. current | 30 A | |
| Saturation voltage | 2.9 V | |
| min. operating temperature | -55 °C | |
| Power dissipation | 114 W | |
| Assembly | SMD | |
| Enclosure | I4-PAK | |
| Version | single |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
