IXGF20N300 | Littelfuse

IGBT, 3000 V, 22 A, I4-PAK, Littelfuse IXGF20N300

Order No.: 74P0750
EAN: 4099891776152
MPN:
IXGF20N300
IXGF20N300 Littelfuse IGBTs

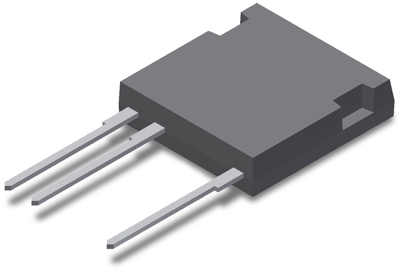

Image may differ
Unit Price (€ / pc.)
46.0887 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,152.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
46.0887 €

IGBT, IXGF20N300, LITTELFUSE

A high voltage IGBT with high peak current capability, an electrically isolated tab, and a low saturation voltage.

Features

  • Silicon chip on direct-copper bond (DCB) substrate
  • Isolated mounting surface
  • 4000 V electrical isolation
  • Molding epoxies meet UL 94 V-0 flammability classification
  • High power density
  • Easy to mount

Applications

  • Capacitor discharge
  • Pulse circuits
Technical specifications
max. Voltage 3000 V
Saturation voltage 3.2 V
Assembly THT
Enclosure I4-PAK
Max. current 22 A
Version single
min. operating temperature -55 °C
max. operating temperature 150 °C
Power dissipation 100 W
Logistics
Country of origin PH
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
