IXG50I4500KN | Littelfuse

IGBT, 4500 V, 74 A, ISOPLUS264, Littelfuse IXG50I4500KN

Order No.: 74P0743
EAN: 4099891776084
MPN:
IXG50I4500KN
IXG50I4500KN Littelfuse IGBTs

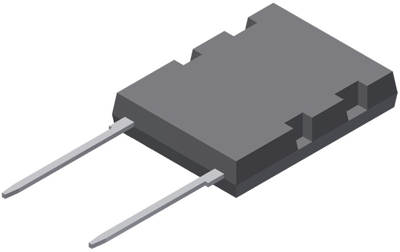

Image may differ
Unit Price (€ / pc.)
104.0774 € *
Standard delivery time from the manufacturer is: 36 Weeks
Total Price:
2,601.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
104.0774 €

IGBT, IXG50I4500KN, LITTELFUSE

A single very high voltage IGBT with easy paralleling due to the positive temperature coefficient of the on-state voltage, short circuit rated for 10 μsec., very low gate charge, and low EMI.

Features

  • Isolation voltage 4200 V
  • Industry standard outline
  • RoHS compliant
  • Epoxy meets UL 94V-0
  • Soldering pins for PCB mounting
  • Backside: DCB ceramic
  • Reduced weight
  • Advanced power cycling

Applications

  • AC motor drives
  • Solar inverter
  • Medical equipment
  • Uninterruptible power supplies (UPS)
  • Air-conditioning systems
  • Welding equipment
  • Switch-mode and resonant-mode power supplies
  • Inductive heating, cookers
  • Pumps, fans
  • Pulse application
  • Capacitor discharge
Technical specifications
max. Voltage 4500 V
Saturation voltage 2.8 V
Assembly THT
Enclosure ISOPLUS264
Switching loss b. switch off Eoff typ. 69 J
Max. current 74 A
Version single
Switching loss at switch-on Eon typ. 123 J
min. operating temperature -40 °C
max. operating temperature 150 °C
Power dissipation 368 W
Logistics
Country of origin PH
Customs tariff number 85411000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
