85100001009 | Littelfuse

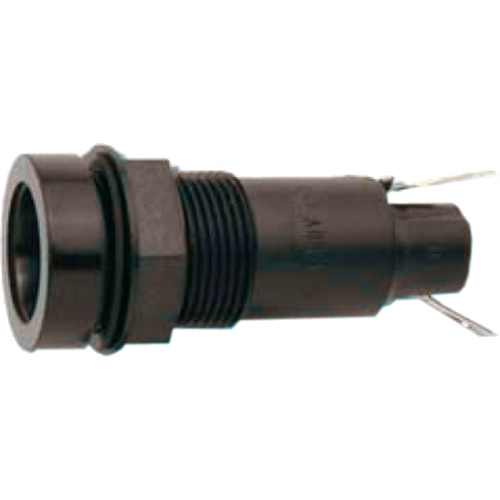

Fuse holder, 5 x 20 mm, 10 A, 250 V, central Mounting, 85100001009
Unit Price (€ / pc.)
5.7834 € *
Available: 1,789 pcs.
Total Price:
5.78 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7834 €
10 pcs.
4.8195 €
100 pcs.
4.1174 €
500 pcs.
3.5819 €
1000 pcs.
3.2606 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holders for 5 x 20 mm G fuses, type Littelfuse/Wickmann 851.
To IEC 60127-6. With M12.7 x 1.5 bushing mount; Rated voltage: 250 VAC. Rated current: 10 A. Fuse holder material: Duroplast, UL 94 VDC0, black. Connections: tinned copper alloy. Connections: 2.8 x 0.5 mm solder/tab terminals. Degree of protection (IEC 60529): IP 54. Touch protection category: PC2. Operating temperatures: –40 to +85 °C. Certifications: VDE, SEV, Semko, UL, CSA. The cap must be installed and is available on separate order.
Type: 851, fuse holder without cap
Technical specifications
| Filter | Property | Value |
|---|---|---|
| For Fuse | 5 x 20 mm | |
| Degree of protection (IP) | IP54 | |
| Rated current | 10 A | |
| Version | closed | |
| Connection | plug-in connection | |
| Touch protection | PC2 | |
| Rated voltage | 250 V | |
| Installation diameter | 12.7 mm | |
| Type of mounting | central Mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
