80000000005 | Littelfuse
Fuse holder, 5 x 20 mm/6.35 x 32 mm, 6 A, 250 V, central Mounting, 80000000005
Unit Price (€ / pc.)
5.2717 € *
Available: 332 pcs.
Available in 4 Days: 1,000 pcs. - if ordered today
Total Price:
5.27 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2717 €
10 pcs.
3.7723 €
100 pcs.
3.2249 €
500 pcs.
2.7965 €
1000 pcs.
2.5466 €
*incl. VAT plus shipping costs
Subject to prior sale

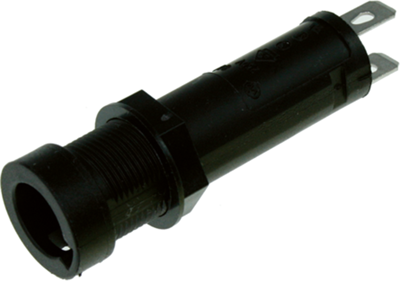

Fuse holders for 5 x 20 mm or 6.3 x 32 mm G fuses, series FAU, type Littelfuse/Wickmann 800.

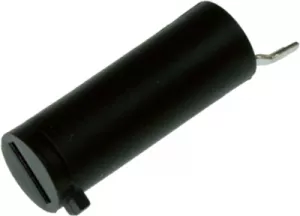

Compliant with IEC 60127-6, with bushing mount, the bayonet lock cap size determines the size of the fuse to insert; Rated voltage: 250 V. Rated current with 5 x 20/6.3 x 32 mm, fuse: 6.3/10 A (VDE, Semko), 16 A (UL, CSA). Dielectric strength: min. 1.5 kV. Holder and cap material: thermoplastic (polyamide PA 6.6), UL 94 VDC0, black. Connections: tinned copper alloy. Degree of protection: IP 40. Touch protection category: PC2. Operating temperatures: –25 to +70 °C. Certifications: VDE, Semko, UL, CSA. The bayonet lock caps must be installed and are available on separate order.
Type: 800, fuse holder without cap
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| For Fuse | 5 x 20 mm/6.35 x 32 mm | |
| Touch protection | PC2 | |
| Installation diameter | 12.7 mm | |
| Type of mounting | central Mounting | |
| Rated voltage | 250 V | |
| Connection | plug-in connection | |
| Degree of protection (IP) | IP40 | |
| Version | closed |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
