64900001039 | Littelfuse
Fuse holder, 5 x 20 mm, 6 A, 250 V, PCB mounting, 64900001039
Unit Price (€ / pc.)
1.0710 € *
Available: 667 pcs.
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
10 pcs.
0.8925 €
100 pcs.
0.7735 €
500 pcs.
0.6664 €
1000 pcs.
0.6069 €
*incl. VAT plus shipping costs
Subject to prior sale

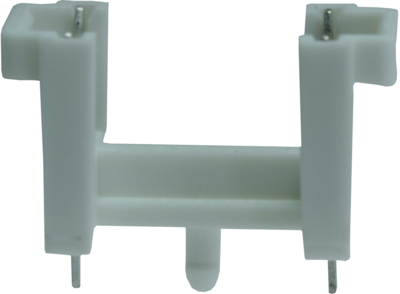

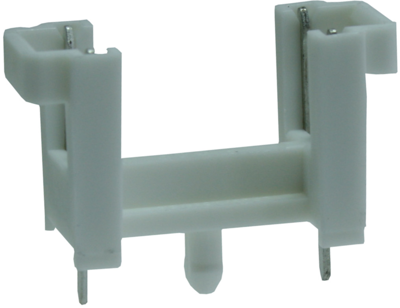

Fuse holders for 5 x 20 mm G fuses, type Littelfuse/Wickmann 649.
Open design, suitable for automated insertion, with contacts covered towards the outside; Limit values: 250 V/6.3 A. Metal parts: tinned copper alloy, solderable. Insulators: thermoplastic (PBTB) self-extinguishing UL 94 VDC0, white. Mounting: by solder joint and pin.
Type: 649, fuse holder
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 2.6 mm | |
| Connection | PCB connection | |
| Type of mounting | PCB mounting | |
| Rated voltage | 250 V | |
| For Fuse | 5 x 20 mm | |
| Rated current | 6 A | |
| Version | open |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
