57100000001 | Littelfuse

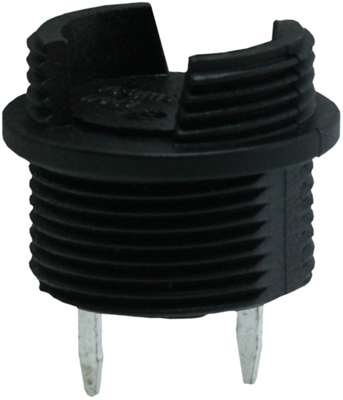

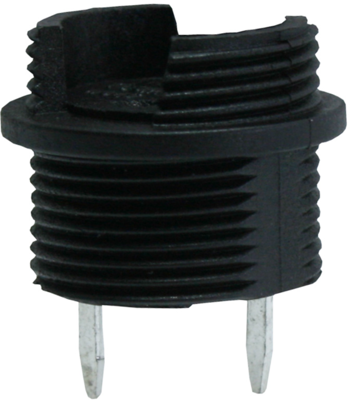

Fuse holder, 8.5 mm/TR5/TE5, 6 A, 250 V, PCB mounting, 57100000001
Unit Price (€ / pc.)
1.1543 € *
Standard delivery time from the manufacturer is: 11 Weeks
holder für picofuse
Type: 571, with PCB terminals
PCB connection, with bulkhead fastener M12.7 x 1.5. Holder material: thermoplastic, black, UL 94 VDC0, polyamide 6.6. Cap: thermoplastic, crystal clear, polycarbonate, UL 94 VDC0. Contacts: tinned copper alloy. Rated voltage: 250 V. Rated current: max. 6.3 A. Rated power: max. 2.5 W.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 12.7 mm | |
| For Fuse | 8.5 mm/TR5/TE5 | |
| Rated current | 6 A | |
| Connection | solder pin | |
| Version | open | |
| Rated voltage | 250 V | |
| Type of mounting | PCB mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
