55900000001 | Littelfuse

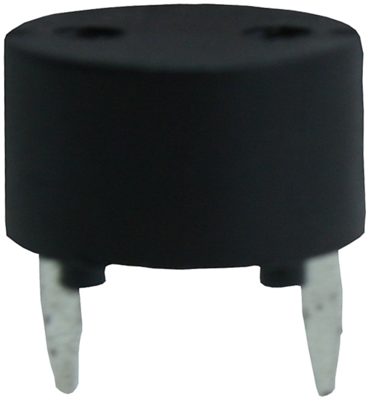

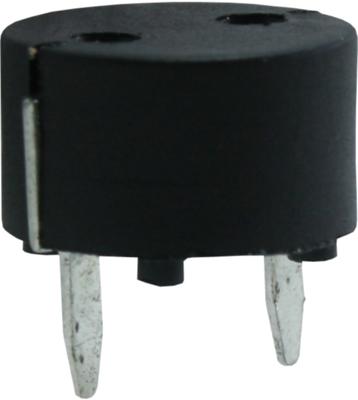

Fuse holder, 8.5 mm/TR5/TE5, 6 A, 250 V, PCB mounting, 55900000001
Unit Price (€ / pc.)
1.4161 € *
Available: 621 pcs.
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4161 €
10 pcs.
1.0234 €
100 pcs.
0.8687 €
500 pcs.
0.7497 €
1000 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse holders for TR 5/TE 5 picofuses, type Littelfuse/Wickmann 559.
For PCB mounting, made of thermoplastic to UL 94 VDC0, black; Grid: 7.18 mm. Limit value: 6.3 A/250 V. Power loss: maximum 1.6 W.
Type: 559, fuse holder
Technical specifications
| Filter | Property | Value |
|---|---|---|
| For Fuse | 8.5 mm/TR5/TE5 | |
| Version | open | |
| Connection | solder pin | |
| Type of mounting | PCB mounting | |
| Installation diameter | 10 mm | |
| Rated current | 6 A | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
