057100CCL | Littelfuse
Fuse holder, 10.3 x 38.1 mm, 30 A, 600 V, 057100CCL
Unit Price (€ / pc.)
23.8357 € *
Standard delivery time from the manufacturer is: 7 Weeks

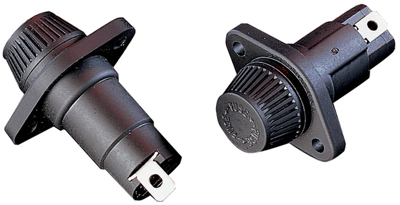

Fuse holder, 057100CCL, Littelfuse
Panel mount fuse holders are for Midget-Style and Class CC fuses. Class CC fuses have a rejection feature on one end cap, which mates with the rejection feature of Littelfuse Class CC fuses holders to prevent the installation of fuses with lower voltage ratings or interrupting ratings. Watertight version must be front panel mounted.
Features
- 600 V
- 30 A for Class CC and Midget fuses
- 4000 V Minimum
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version of the cap | finger grip | |
| Rated voltage | 600 V | |
| Connection | plug-in connection | |
| For Fuse | 10.3 x 38.1 mm | |
| Version | closed | |
| Rated current | 30 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 1 piece |
| Country of origin | MX |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
