03540911ZXGY | Littelfuse

Open fuse holder, 3AG, 30 A, 600 V, chassis mounting, 03540911ZXGY

Order No.: 75P1567
EAN: 4099891884321
MPN:
03540911ZXGY
Series: 354
03540911ZXGY Littelfuse Fuse Holders
Image may differ
Unit Price (€ / pc.)
36.2236 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
1,811.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
36.2236 €

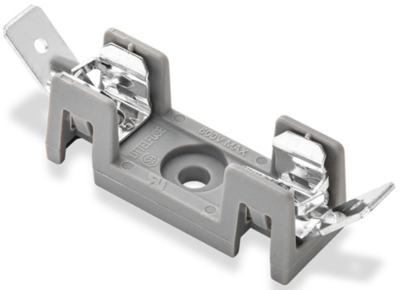

Fuse block, 03540911ZXGY, LITTELFUSE

A low profile fuse block featuring individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. This, plus a one-piece clip/terminal assures low contact resistance. Higher current ratings have been attained using spring brass clips.

Technical specifications
Filter Property Value
Connection quick connection
Type of mounting chassis mounting
For Fuse 3AG
Rated voltage 600 V
Version fuse block
Rated current 30 A
Installation diameter 6.35 mm
Logistics
Property Value
Country of origin MX
Customs tariff number 85369095
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
